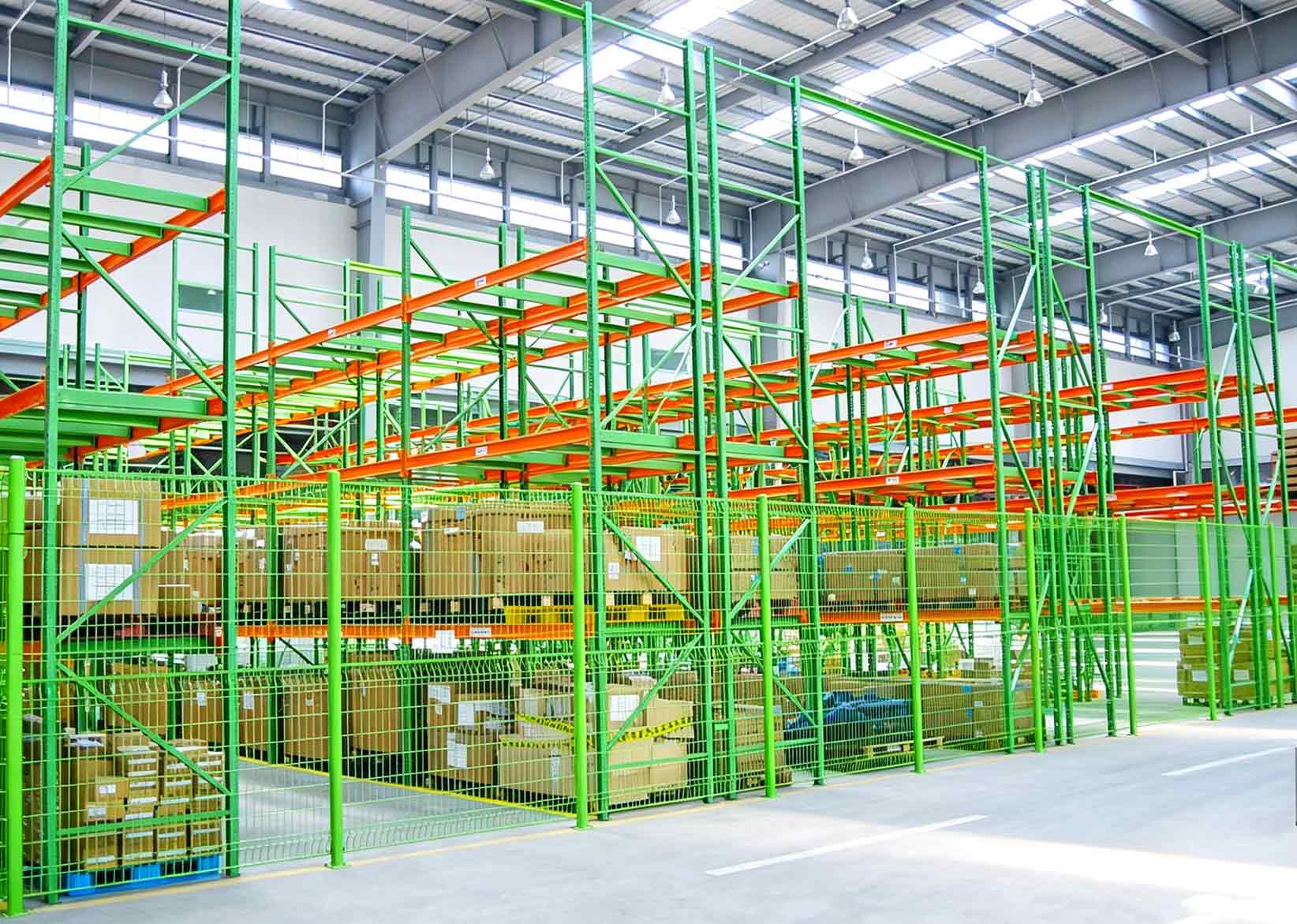

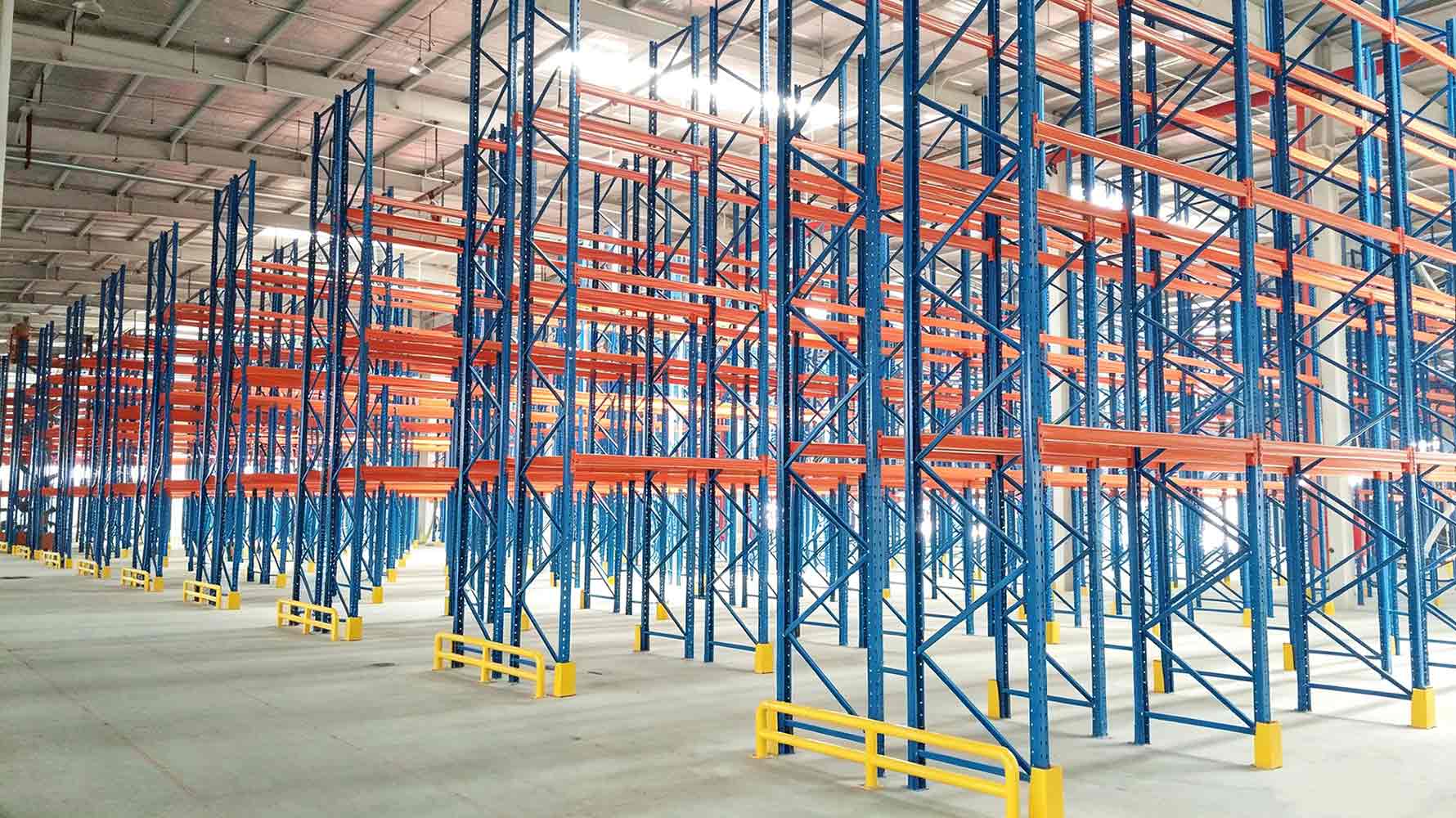

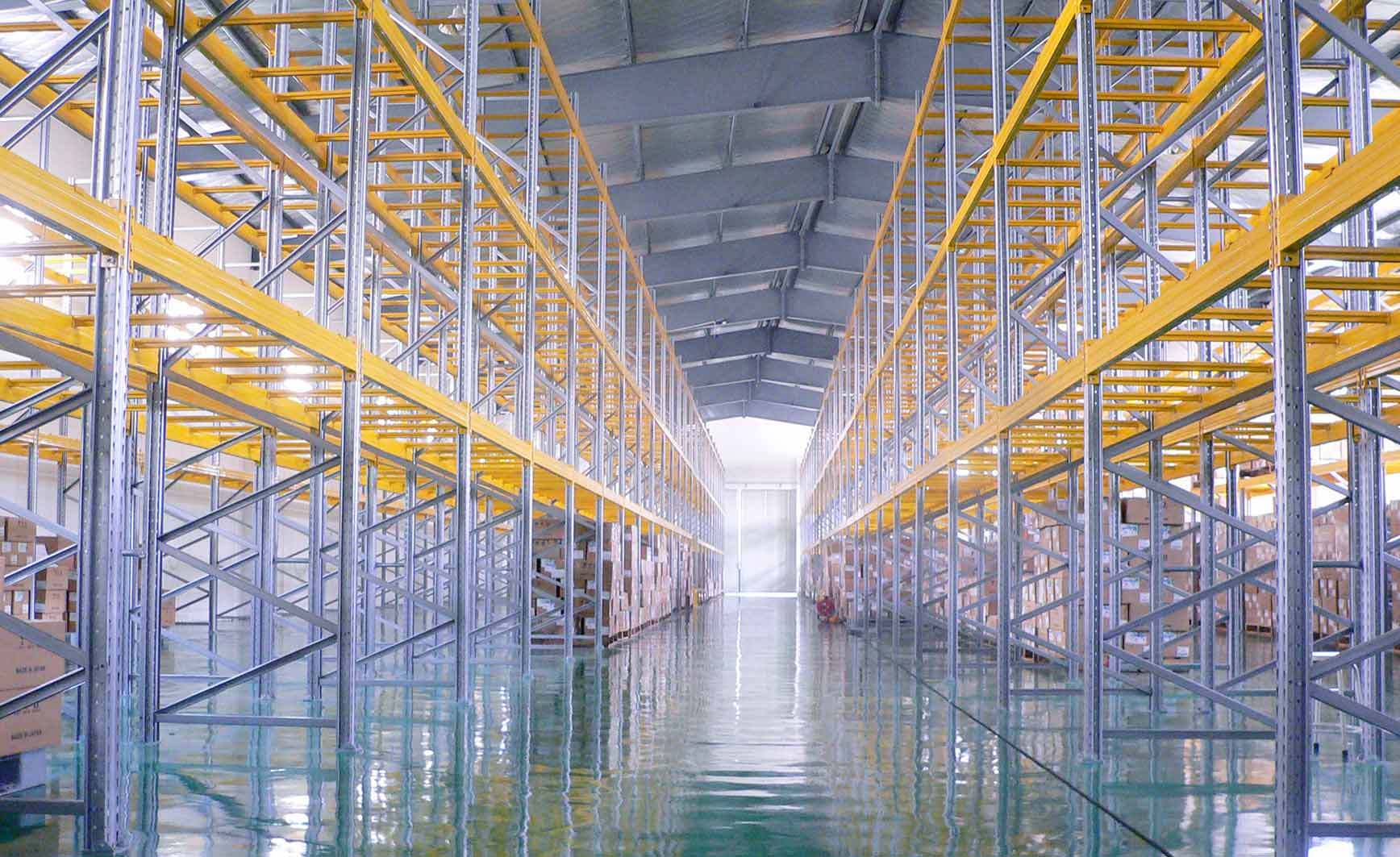

With simple structure, pallet racking has the widest application. This kind of racking can be conveniently installed and operated, and allows easy searching of goods location. Generally, a pallet is used as a unit of storage,and the type,specs and size of pallet, as well as storage weight and stacks height, is determined according to goods features. Specs of such racking are determined according to the outline and weight of the goods in pallet and the dimension of the warehouse. Generally each level can contain 1-3 pallets.
The racking is composed of upright frame and beam, which are connected in the form of hitching and fixed with safety pins, so that the structure is simple but reliable. In the event of any change in the varieties of goods stored, warehouse keepers may adjust the beam height freely with a pitch of 50mm or 75mm.
| Core Components | Upright frames, load beams, beam locking pins, horizontal bracings, diagonal bracings, base plates, leveling feet, column protectors, pallet backstops, wire mesh decks, anchor bolts |
| Pitch Adjustability | Standard pallet rack itself has no inclined surface. When matched with carton flow accessories, the roller track brackets support multi-position adjustment of incline angle to control the sliding speed of cartons. |
| Storage Capacity | Multi-layer vertical pallet storage structure. Customizable bay width, depth and height to fit different sizes of pallets. Each level holds single or double pallets, greatly increasing overall warehouse inventory load volume. |
| Layout Configurations | Single row layout, back-to-back double row layout, narrow aisle layout, multi-bay continuous combination layout, high-rise storage layout, mixed storage layout integrated with long span shelving or carton flow racking. |
| Compatible Equipment | Electric forklifts, manual pallet jacks, reach trucks, narrow aisle stackers, standard pallets, warehouse picking trolleys, cargo conveyors, WMS warehouse management system, cargo label holders. |
| Safety Connections | Spring safety lock pins for beams, bolt-connected bracing joints, ground anchor bolts for base plates, interlocking frame connectors, anti-separation beam locks, fastening nuts and bolts for all assemblies. |

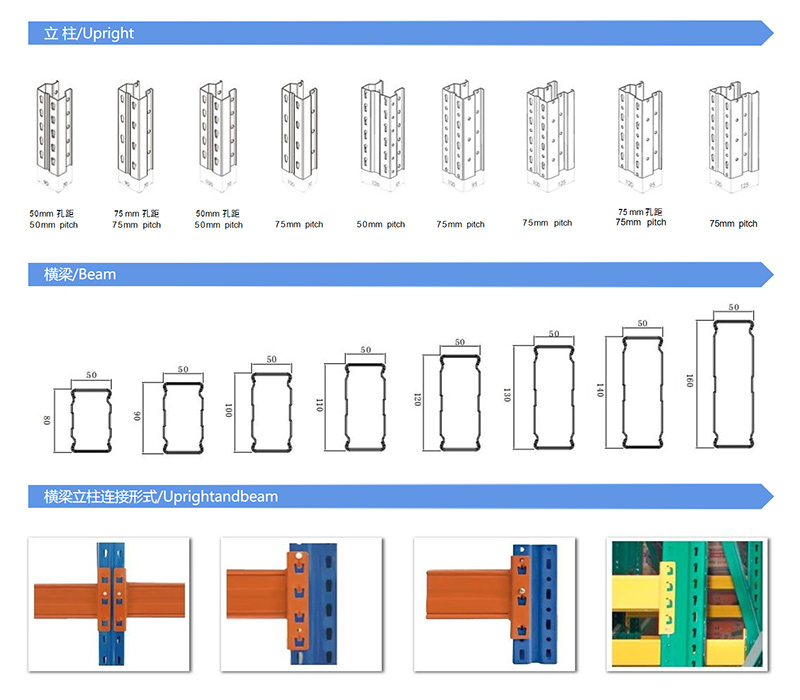

We offer a diverse range of upright and beam profiles to perfectly match your specific load-bearing requirements. Our uprights feature precise 50mm or 75mm hole pitches for highly flexible tier adjustments, while the beams are engineered in various cross-section heights (from 80mm to 160mm) to ensure superior strength and weight distribution. All connections are secured via an advanced locking pin mechanism for ultimate stability.

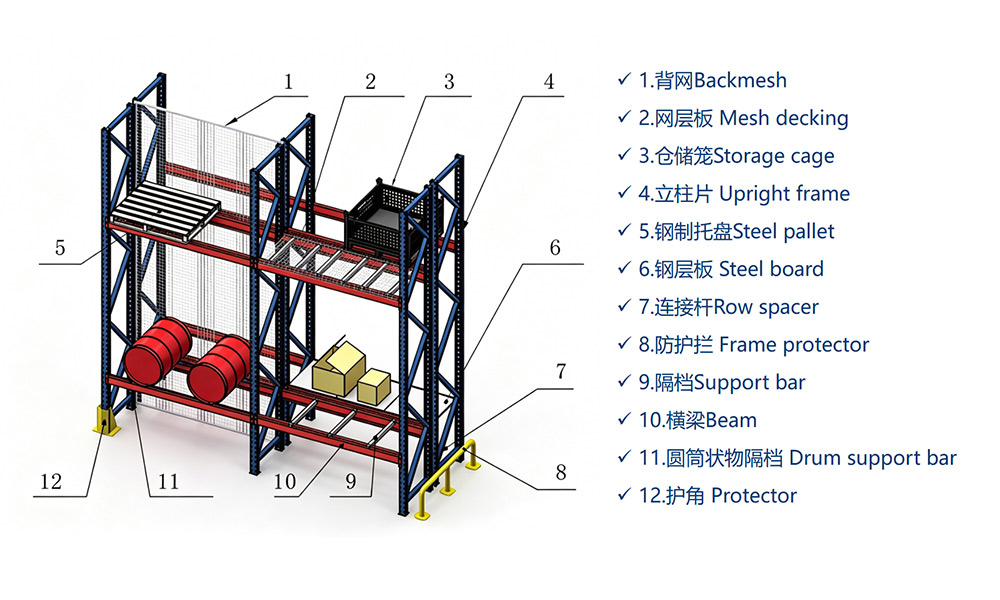

The racking can be equipped with other safety accessories such as back mesh, steel board, support bar,pallet stopper,frame protector and corner protector.
Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:
