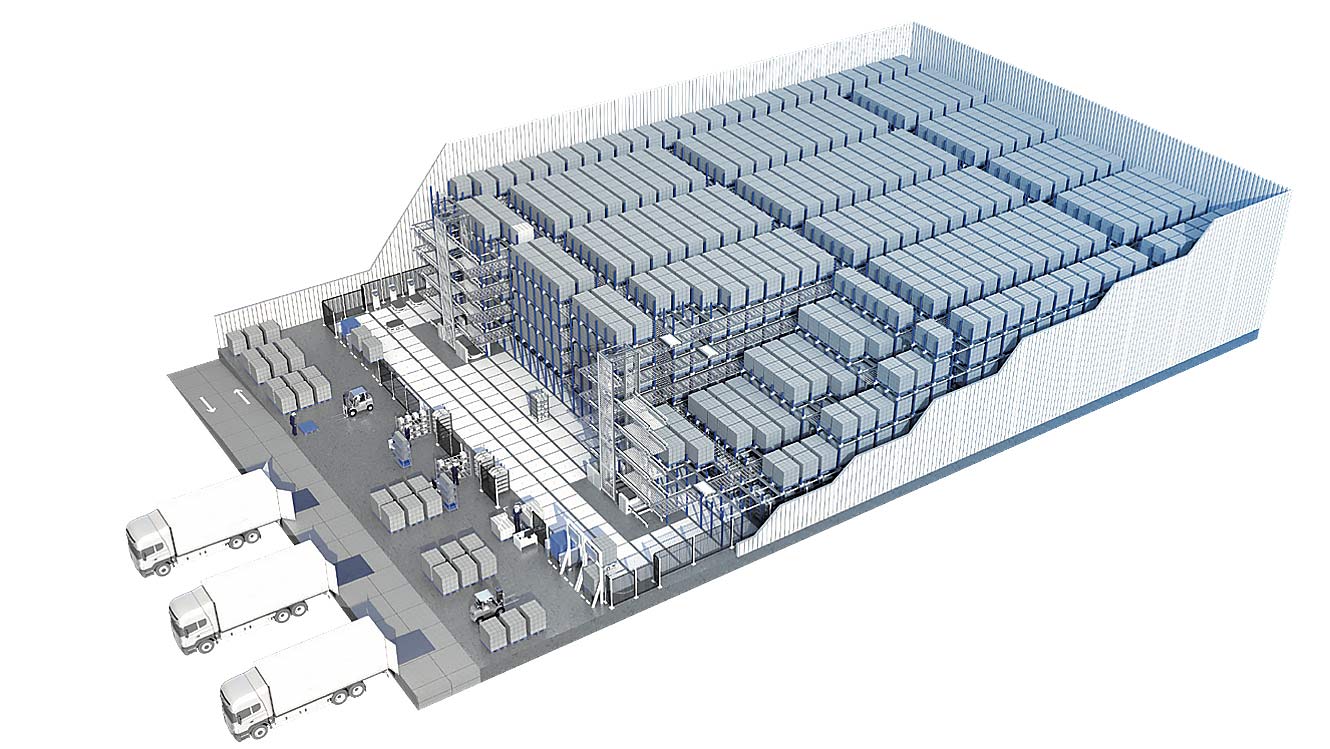

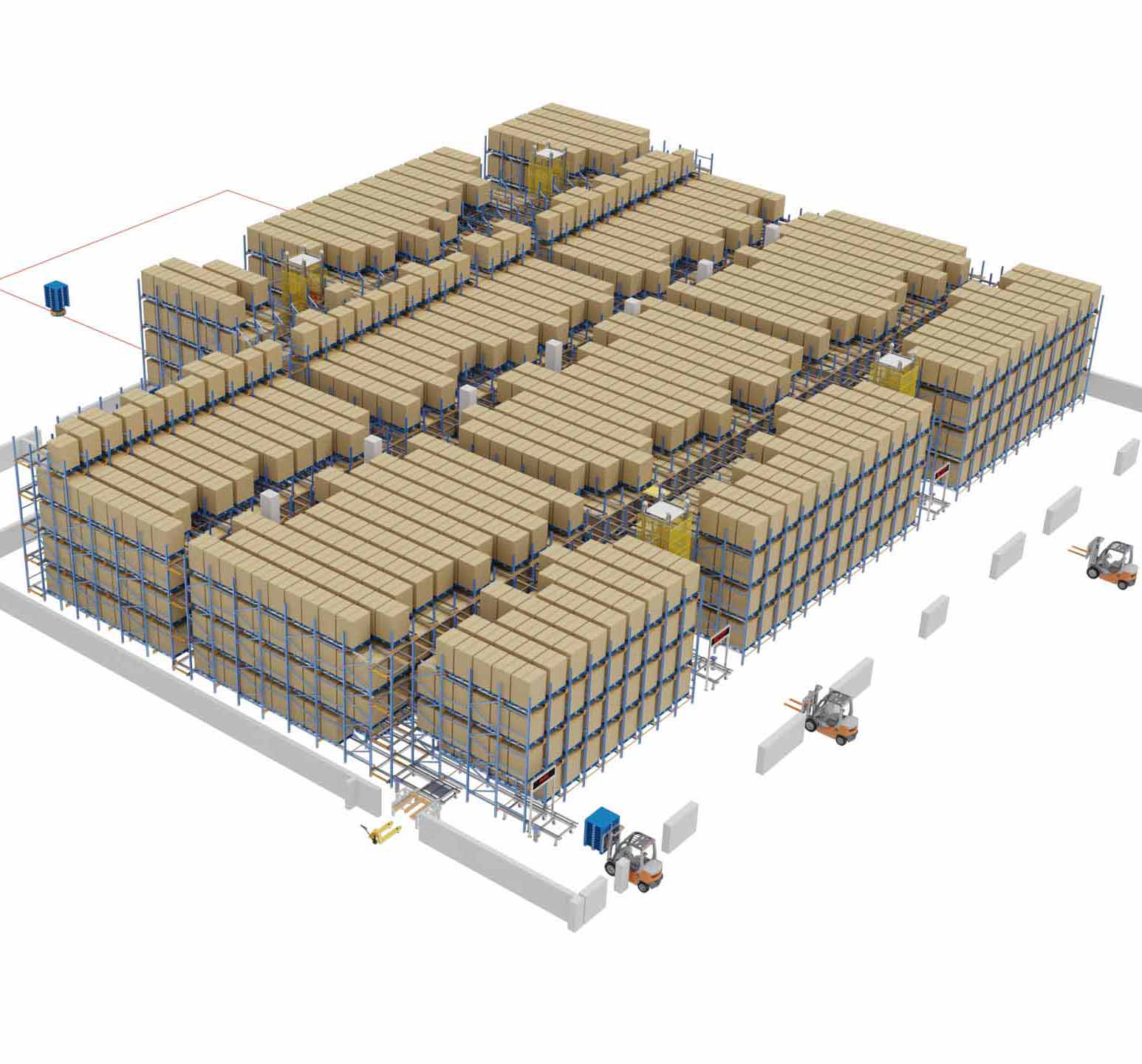

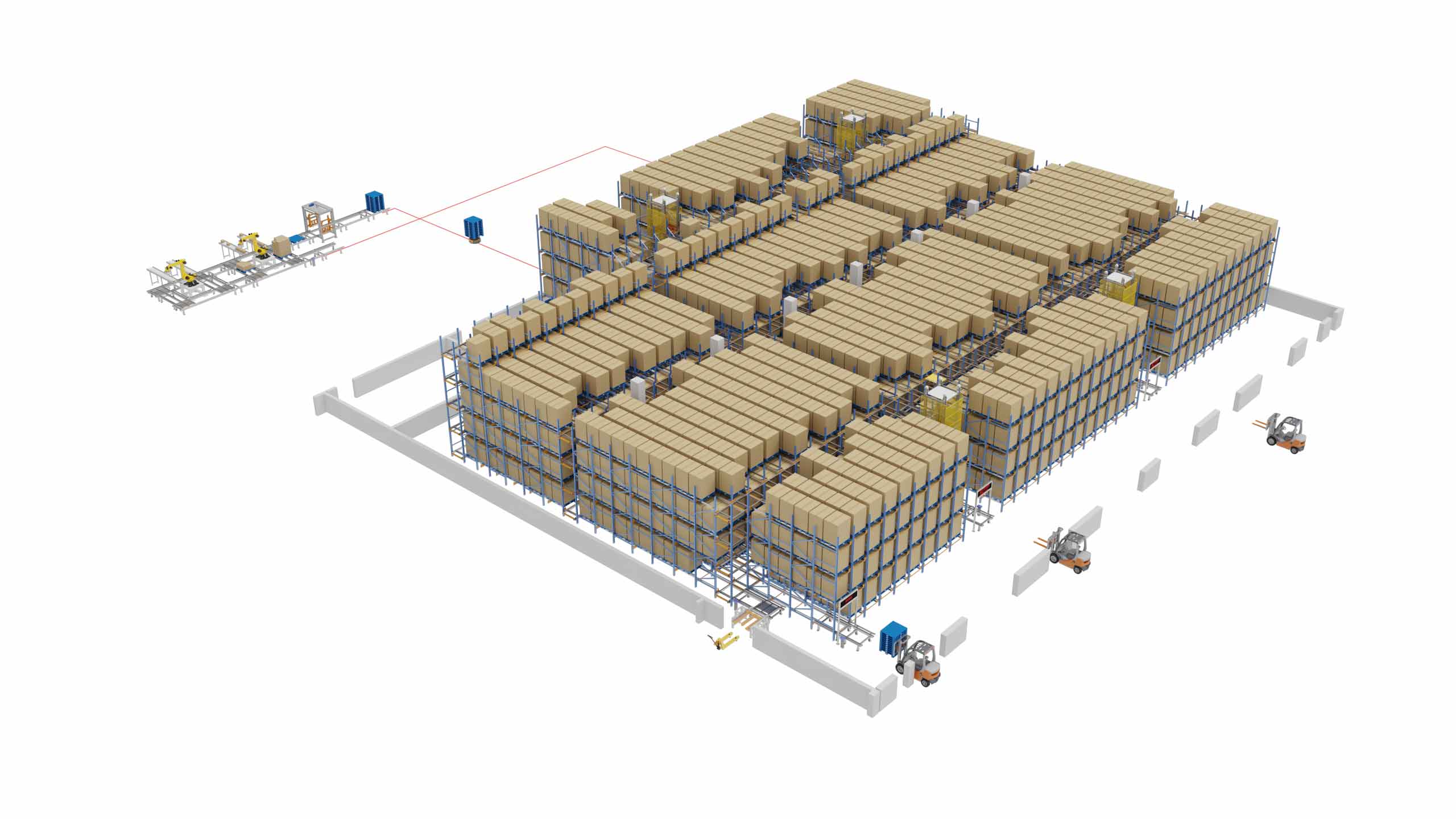

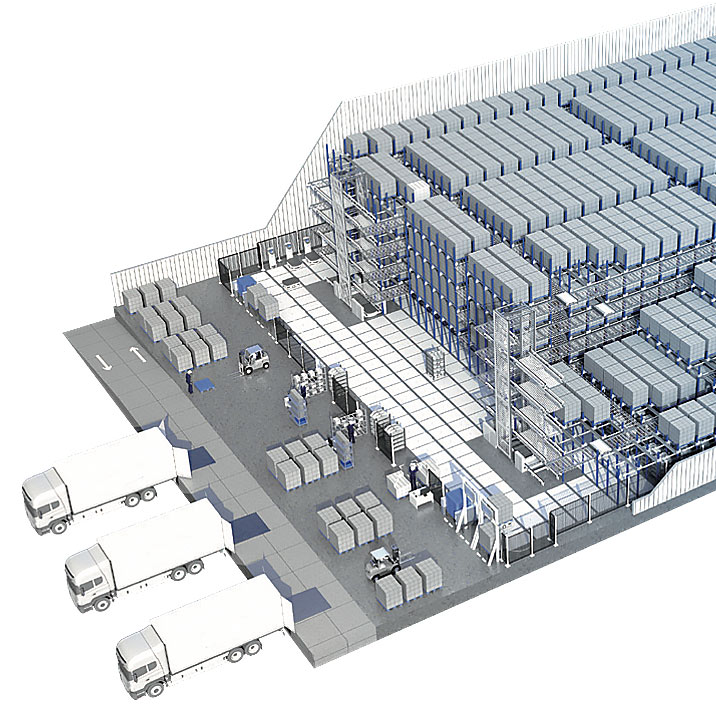

Intelligent 4-Way Shuttle System

📖 Product Overview

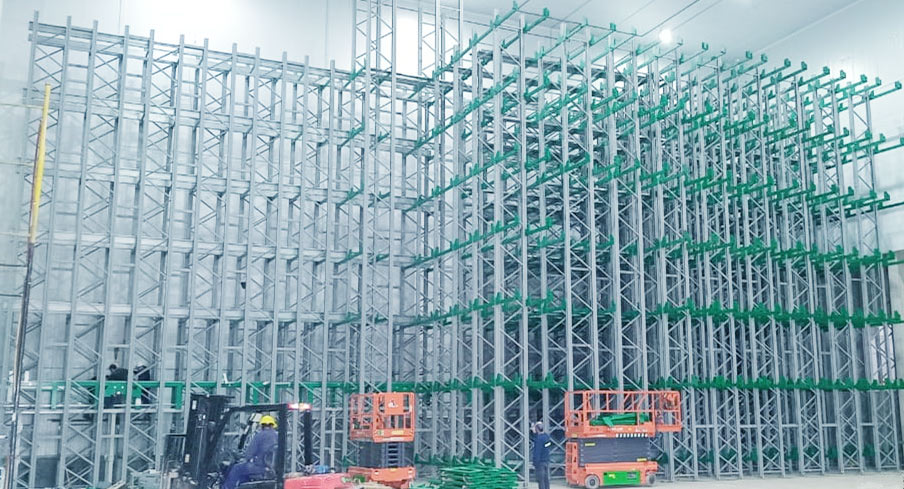

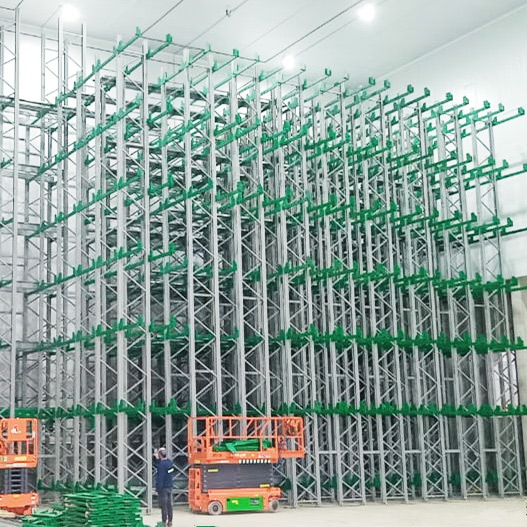

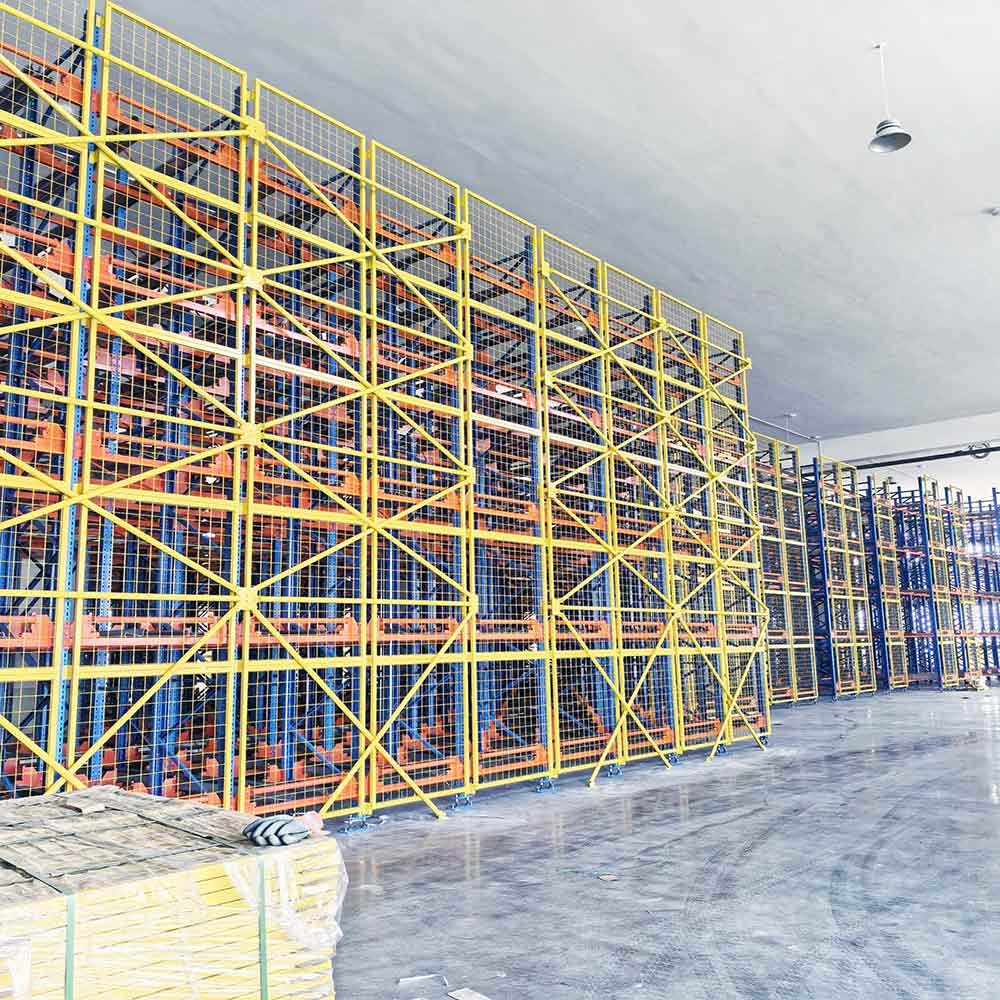

4-Way Shuttle Racking system is characterizedby high storage density, high accessefficiency and high management abilityover more varieties of goods. EitherFIFO or FILO modes can be configured.It is not necessary to drive forklift intothe aisle of racking. This racking systemis composed of intelligent shuttleand shuttle racking, and can be alsointegrated with automatic stackingsystem to form automatic storagesystem.

As shuttle racking system does notrequire drive of forklift into aisle, theoperation time can be reduced by ahalf. In addition, compared with drive-in racking, it requires much less forklift.It is suitable for warehouse with highgoods turnover, and is characterizedby easy access, allowing placement ofdifferent goods on different guide raillevels, and higher storage area use rate.

⚙️ Specification

📐 Component Details & Profiles

1 Upright.

2 Linkpole

3 Arm beam

4 Adjustable foot

5 Arm

6  Pallet guide board

7 Galvanized pallet support rail

8 Protector

9 Forklift positioning plate



⭐ Advantages

• ✔️ Four-directional movement & superior flexibility: The shuttle can travel forward, backward, left and right, and switch lanes freely without manual handling. It adapts to irregular, multi-area and complex warehouse layouts.
• ✔️ High operational efficiency: Multiple shuttles work simultaneously under intelligent system scheduling, featuring large throughput and fast goods turnover.
• ✔️ Low labor cost & high safety: Minimize on-site manual work, reduce human errors and collision risks, and improve overall warehouse safety.

🏭 Application

Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:
