Intelligent Shuttle Racking System

📖 Product Overview

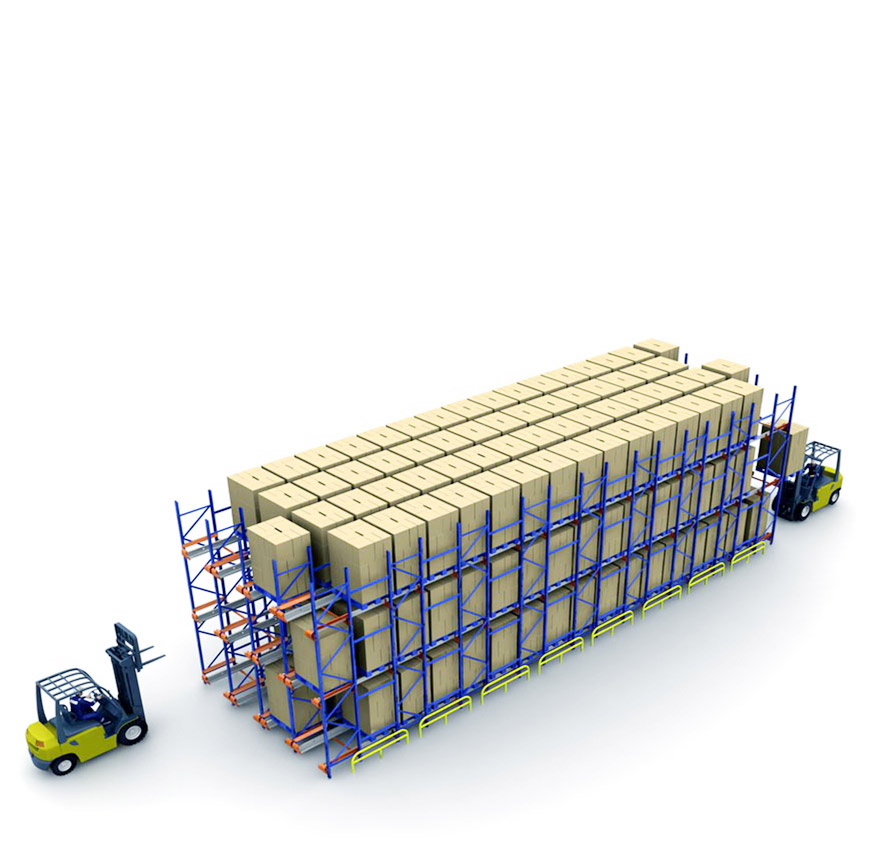

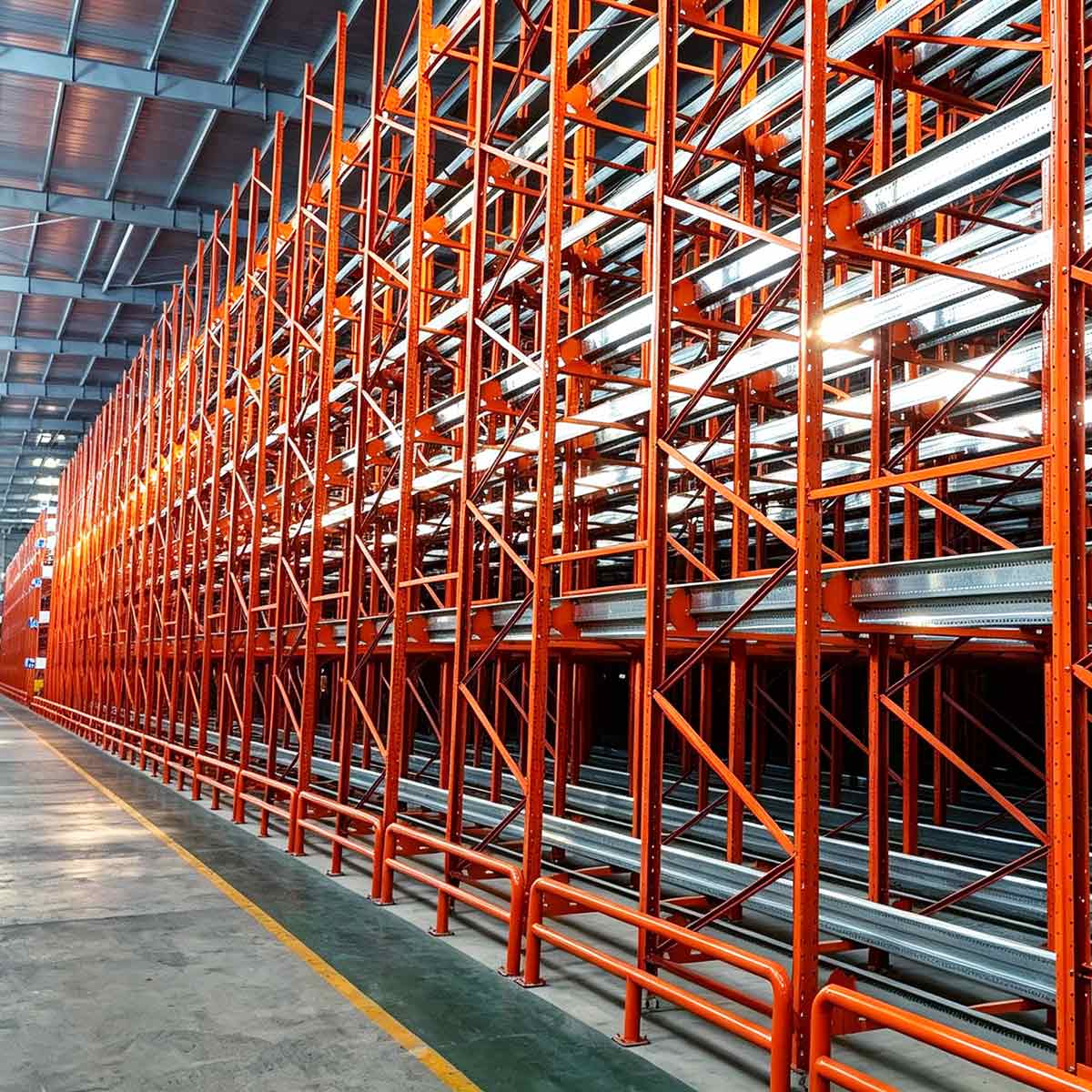

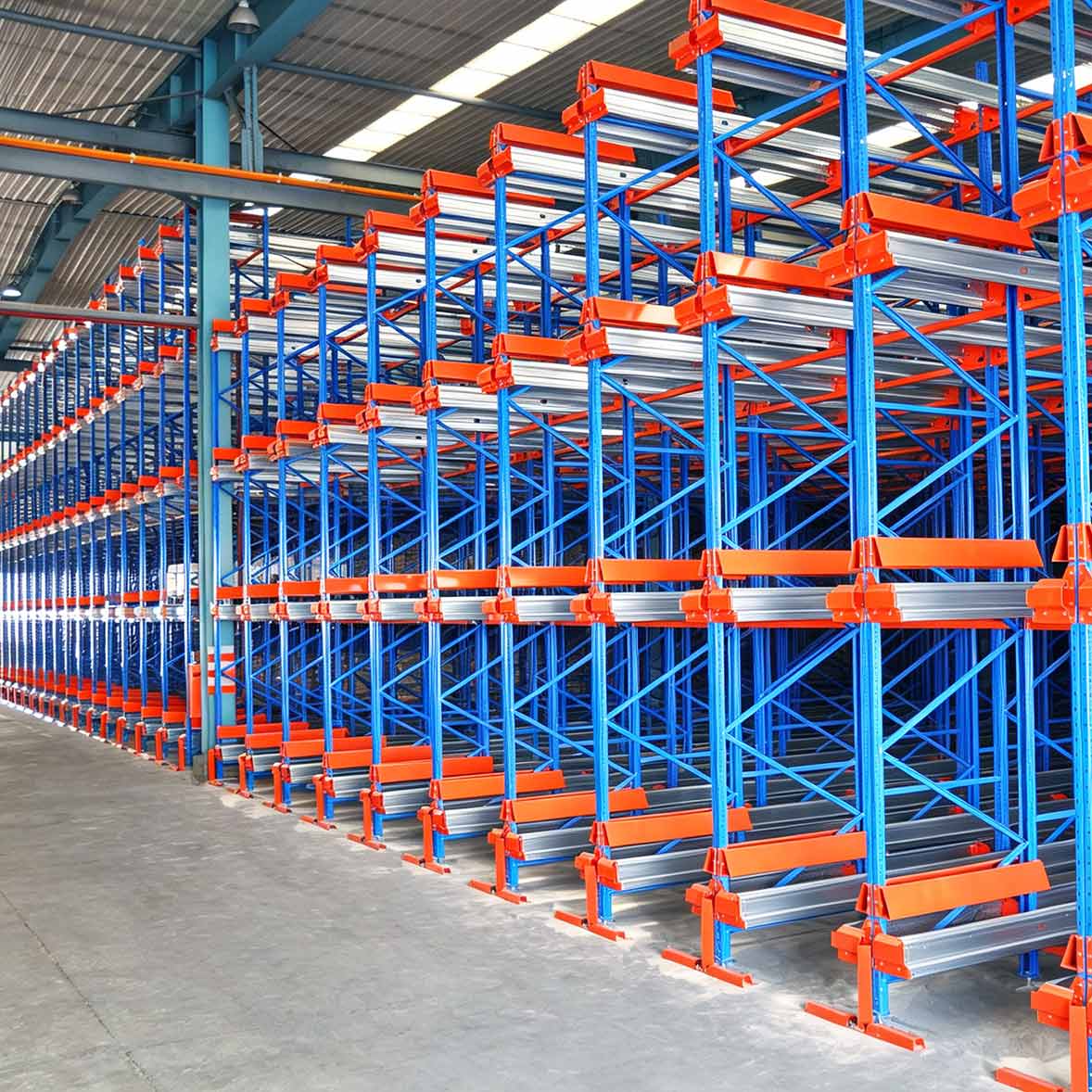

Shuttle racking system is characterized by high storage density, high accessefficiency and high management abilityover more varieties of goods. Either FIFO or FILO modes can be configured.It is not necessary to drive forklift intothe aisle of racking. This racking systemis composed of intelligent shuttleand shuttle racking, and can be alsointegrated with automatic stackingsystem to form automatic storagesystem.

As shuttle racking system does notrequire drive of forklift into aisle, theoperation time can be reduced by ahalf. In addition, compared with drive-in racking, it requires much less forklift.It is suitable for warehouse with highgoods turnover, and is characterizedby easy access, allowing placement ofdifferent goods on different guide raillevels, and higher storage area use rate.

⚙️ Specification

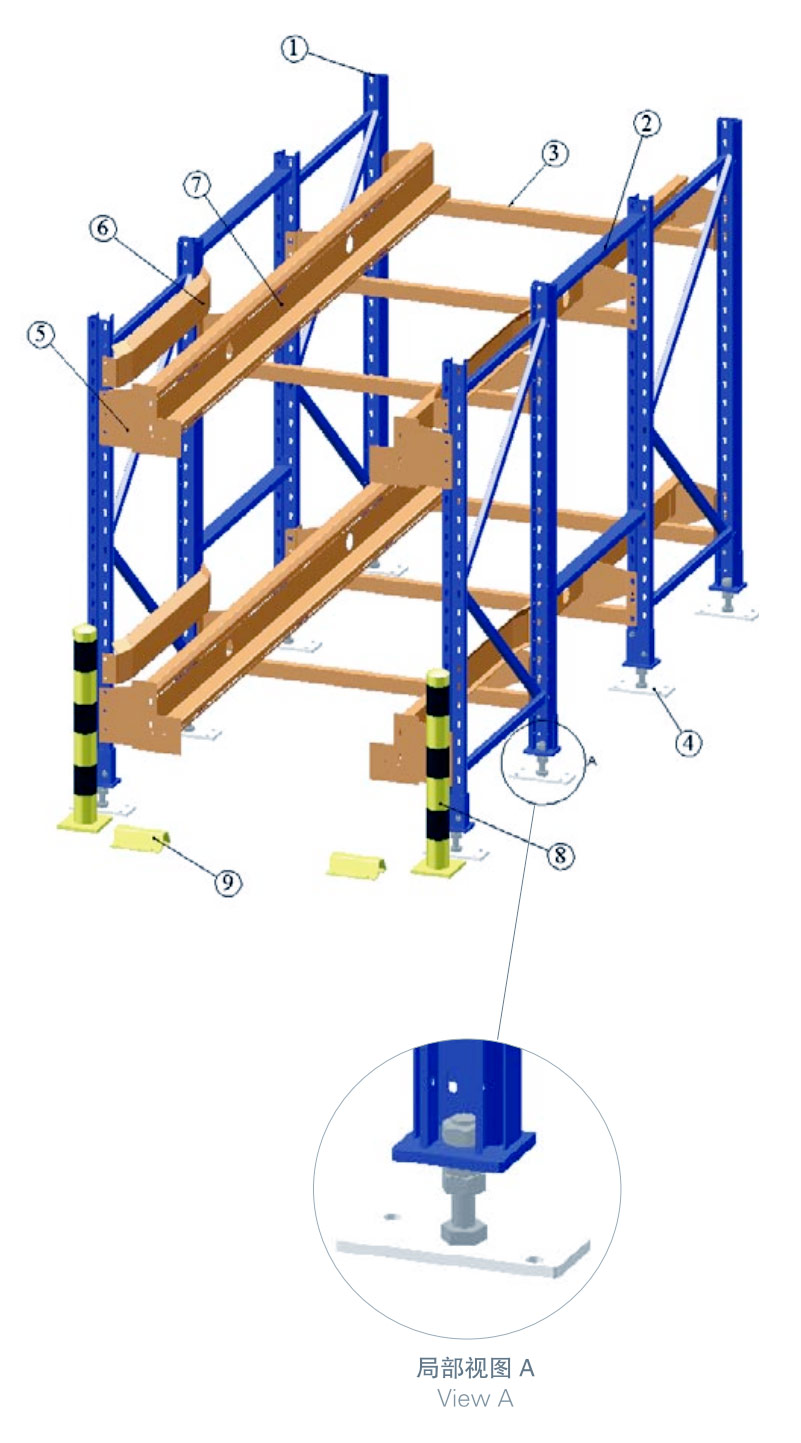

📐 Component Details & Profiles

1 Upright.

2 Linkpole

3 Arm beam

4 Adjustable foot

5 Arm

6  Pallet guide board

7 Galvanized pallet support rail

8 Protector

9 Forklift positioning plate



⭐ Advantages

• ✔️ Ultra-high space utilization: It eliminates numerous forklift aisles, achieving space utilization of 80%–90%, far higher than conventional racking systems.
• ✔️ High operational efficiency: Pallets are transported automatically by shuttle carts. Forklifts only work at the rack front, reducing driving distance and improving overall throughput.
• ✔️ High safety & stability: Integral steel structure with strong load-bearing capacity. Separate operation areas for forklifts and shuttle carts lower collision risks.

🏭 Application

Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:

❓ FAQ
