⭐ Product Overview

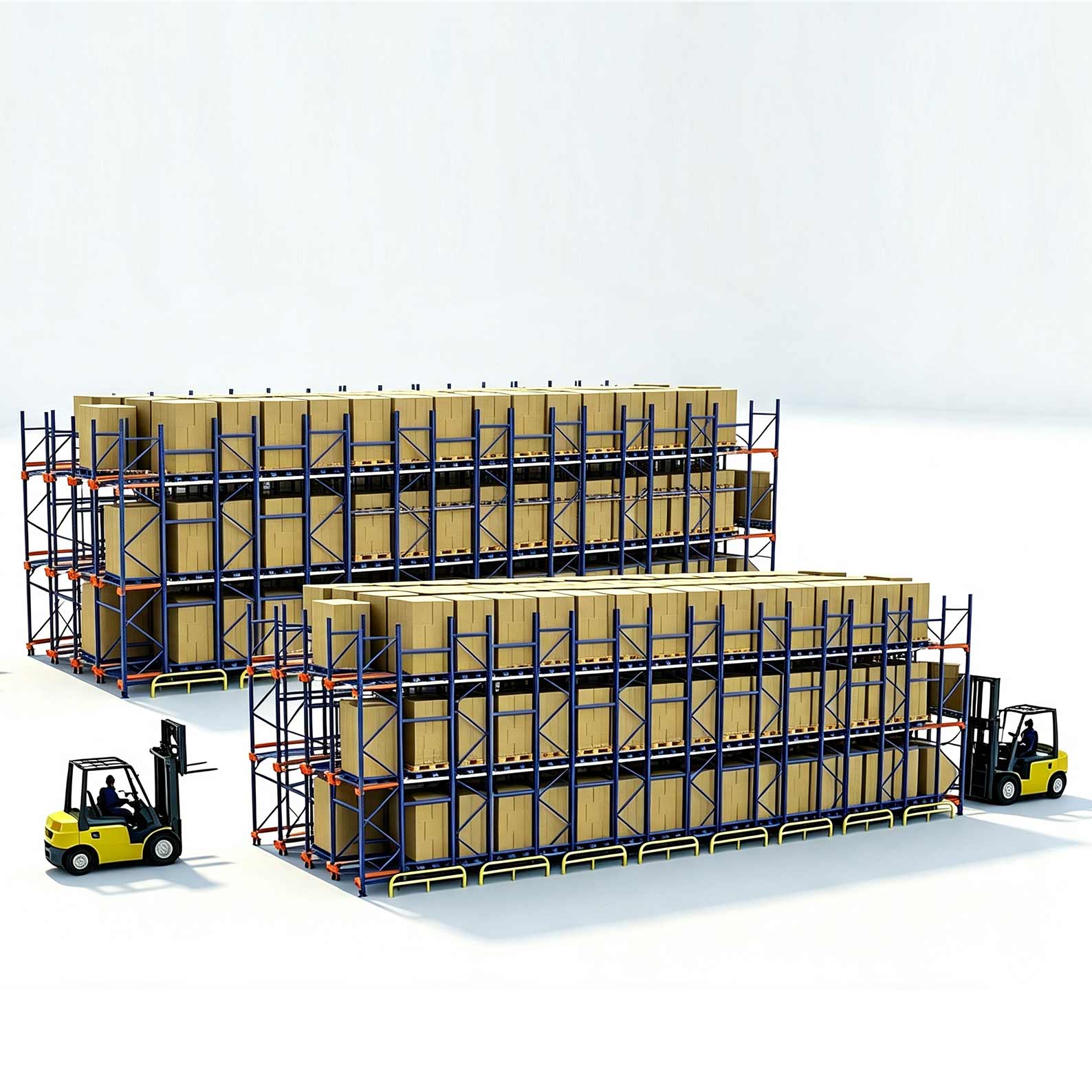

Radio shuttle racking system (also named pallet shuttle rack) is a popular semi‑automated dense storage solution for palletized goods.
The whole system consists of heavy‑duty pallet rack structure, guide rails, battery‑driven radio shuttle carts. Forklifts only operate at lane openings, while the shuttle cart travels inside rack rails to automatically load and retrieve pallets.
Compared with drive‑in racking, shuttle rack greatly reduces rack collision damage and safety risks. Compared with full‑auto AS/RS system, it owns lower total investment and easier deployment. It is perfect for large‑quantity, less‑SKU pallet goods storage, and widely adopted in cold‑chain warehouses.
⚙️ How It Works
1: Forklift places pallet on the shuttle cart at the lane entrance.
2: Operator sends commands via wireless remote controller.

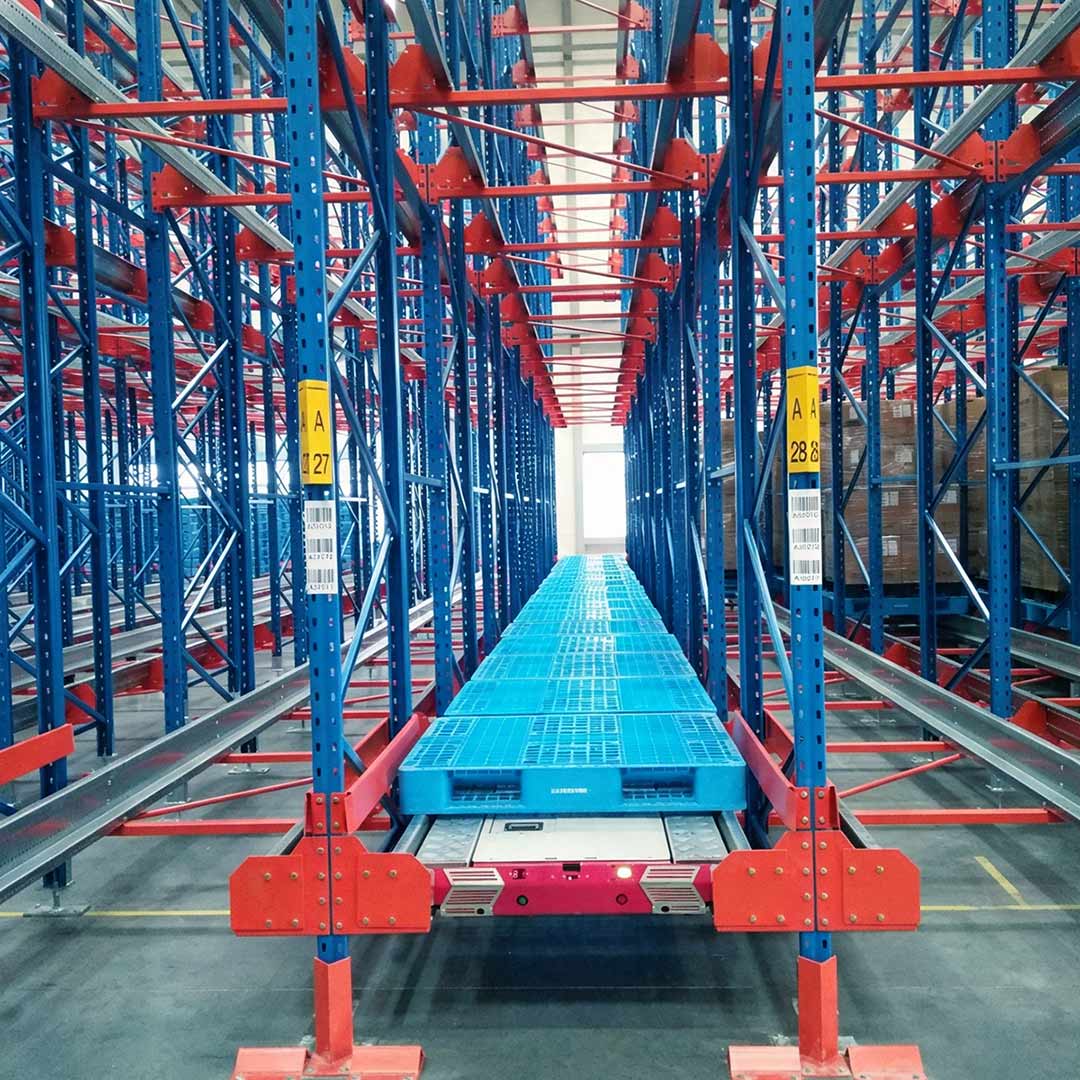

3: Shuttle cart transports pallet deep into the storage lane along guide rails.
4: For outbound: shuttle pulls target pallet back to lane entrance.
5: Forklift picks up pallet and completes the cycle.
📐 Main Components
1 Rack Frame: Uprights, beams, bracings, base plates, heavy‑duty cold‑rolled steel structure.

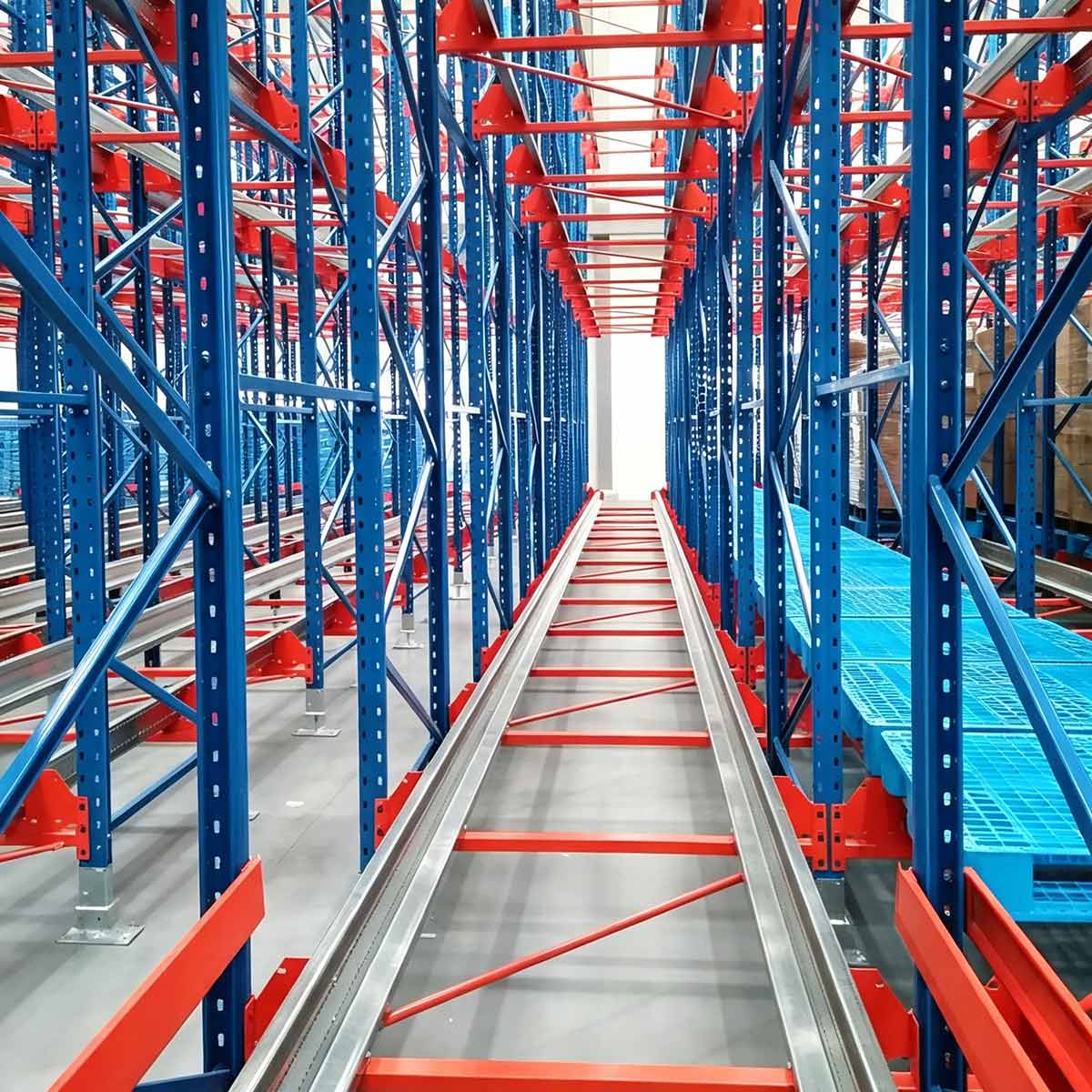

2 Guide Rails: Special high‑strength rails for shuttle cart traveling.
3 Radio Shuttle Cart: Battery powered, wireless remote control, with safety sensors.
4 Protection Accessories: End‑stop, safety guards, rack protectors.
5 Optional: WCS/WMS connection module, battery charger.
⭐ Core Advantages
- ✔️UUltra‑high Space Utilization: Cut redundant forklift aisles, raise warehouse space utilization to 75‑80%, greatly expand storage capacity without expanding warehouse building.
- ✔️Higher Operation Safety: Forklifts stay outside rack lanes. Avoid forklift collision to racking frames. Shuttle built‑in anti‑collision, laser positioning, over‑load protection sensors. Reduce onsite accident risk.
- ✔️Strong Expandability: Can upgrade later to connect with WMS / WCS system. Expandable to mother‑son shuttle system or four‑way shuttle system for future automation upgrade.
🏭 Application
Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:
Logistics & Distribution Centers Large-scale Manufacturing Plants Cold Storage Facilities Retail & E-commerce Warehouses
❓ FAQ
Q: What is the difference between shuttle rack and drive‑in rack?
A: For drive‑in rack, forklift must drive inside lanes, easy to cause rack damage & safety hazard. For shuttle rack, forklift works only at lane ends, shuttle finishes internal transport. Shuttle rack owns better safety, higher efficiency and longer service life.
Q: Can shuttle rack work in cold freezer warehouse?
A: Yes. We supply low‑temperature version shuttle carts specially designed for‑25℃ cold storage, widely used in food cold‑chain projects.
Q: Can I use my existing forklifts?
A: Yes. No special forklift required. Ordinary standard forklifts are compatible with shuttle rack system.
