Warehouse Space-Doubling Steel Platform

📖 Product Overview

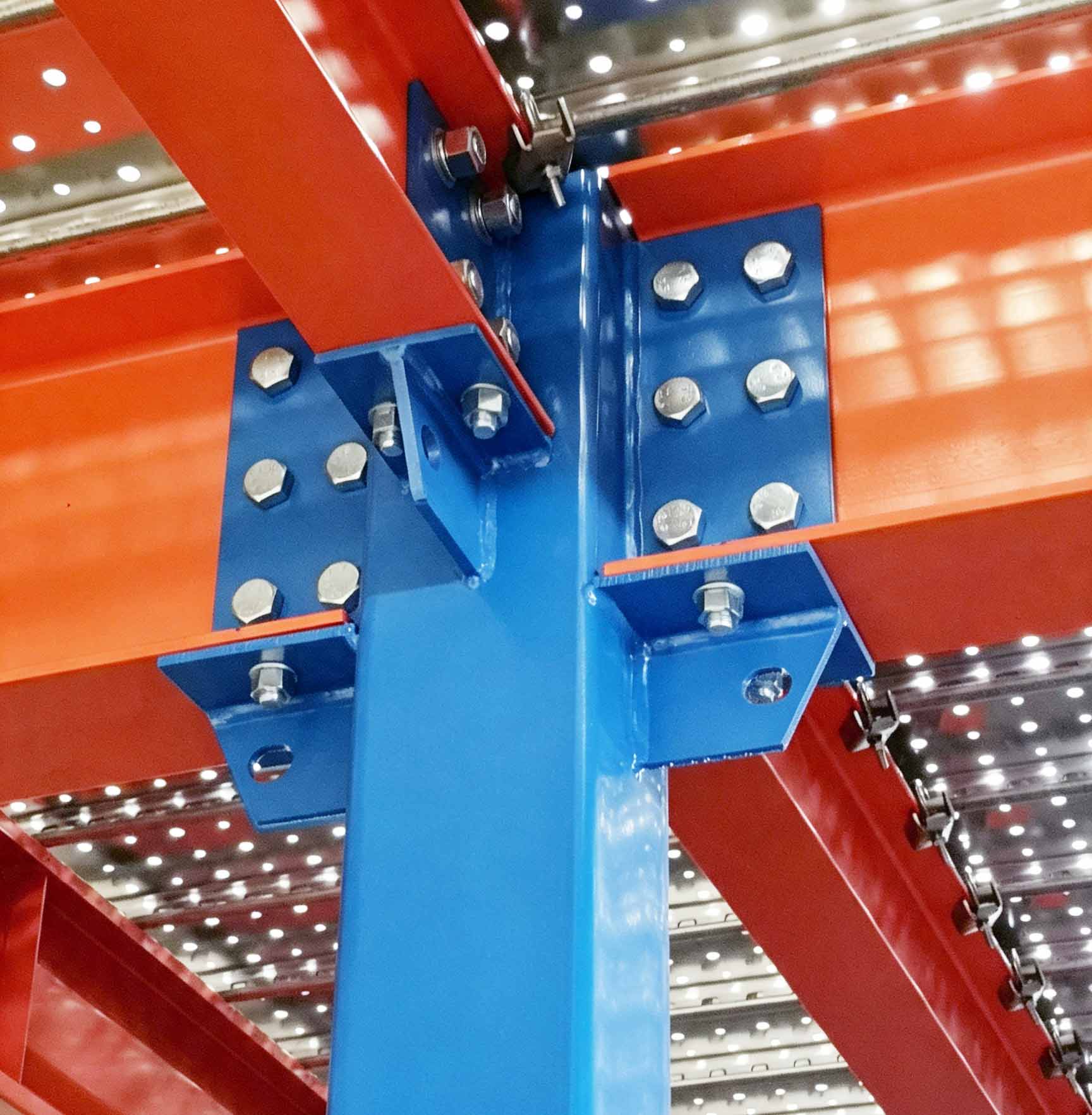

Platform is also called steel structure platform. Modern platforms have many structures and complete functions. The major structural characteristc of platform is fully assembled structure with flexible design, so that individualized platforms can be designed and produced according to site requirements, function requirements, and logistic requirements. Platforms are widely used in modern storage. Generaly, platforms use square steel pipe or H-shaped steel as post, H-shaped steel or C-shaped beam as floor bearing beam, special floor board or grating as floor surface layer, and high-strength bolts and special fasteners as connectors. The design bearing capacity of platform is generally less than 1,000kg/sqm. It can be used together with lifting platform, goods elevator and forklift, and two-tier or multi-tier structures may be designed in consideration of warehouse height and use requirements.

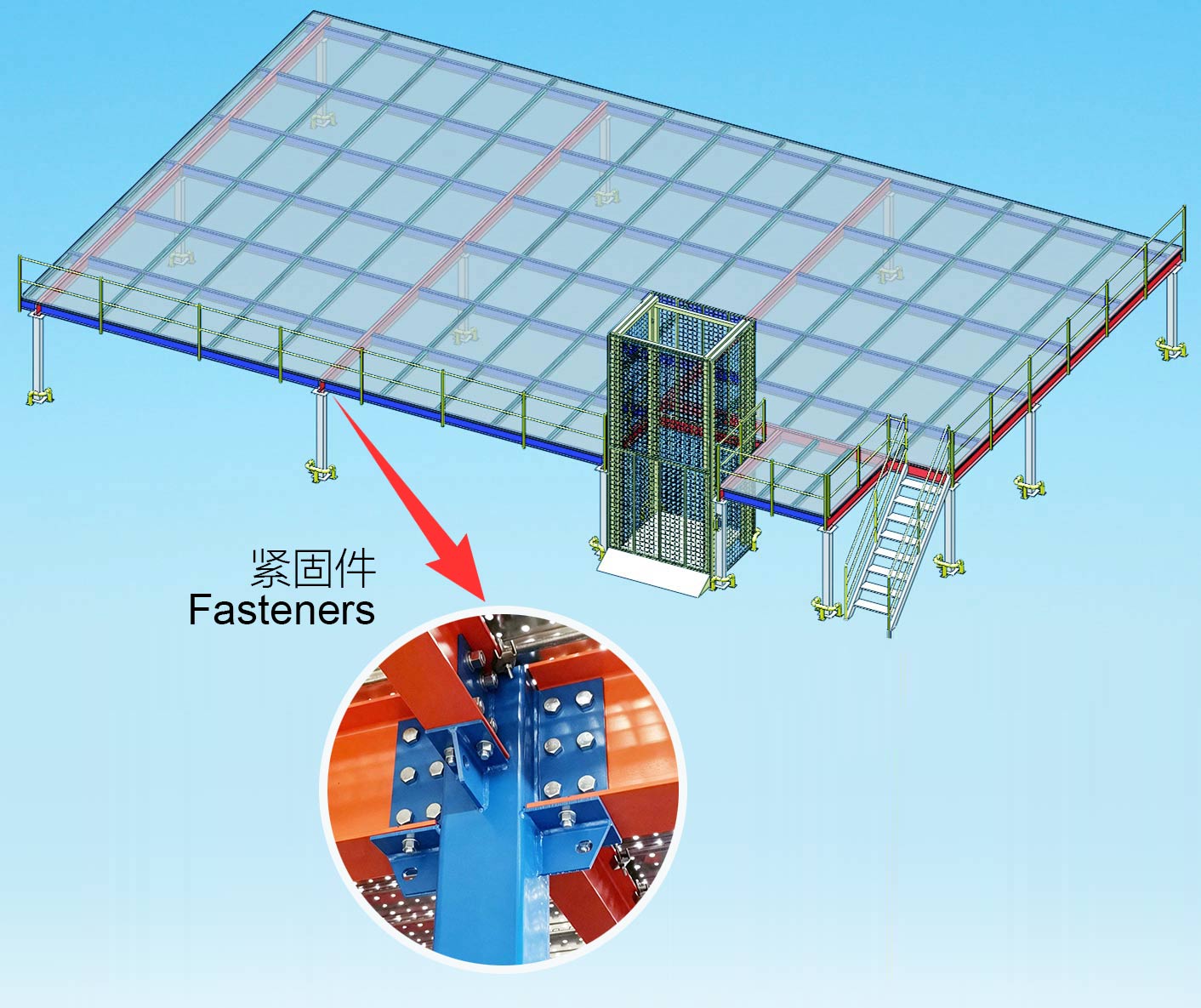

⚙️ Layout Diagram

📐 Scope of application

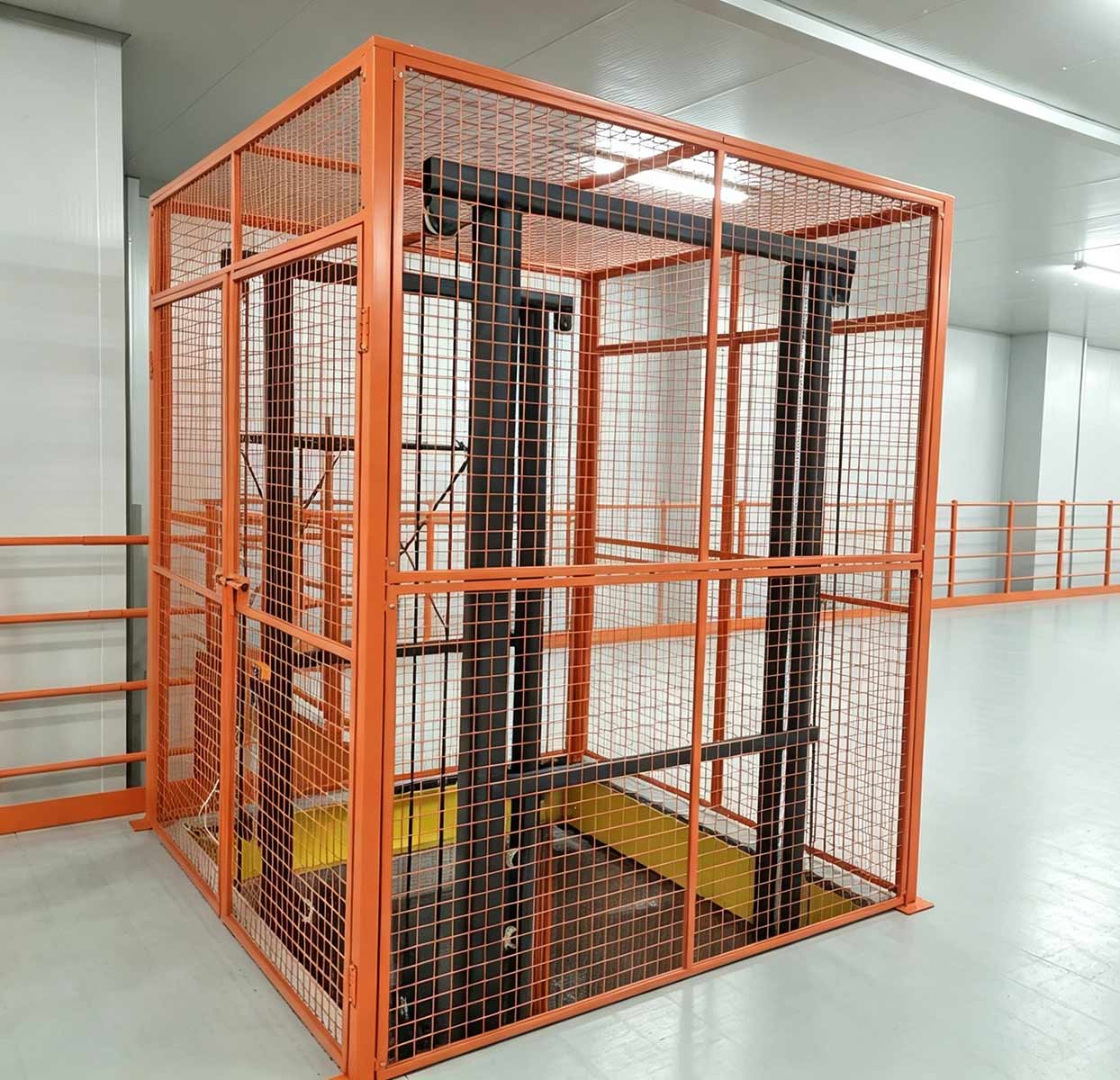

This industrial steel mezzanine platform features strong adaptability and wide applicability, suitable for most indoor warehouse and factory scenarios. It is widely used in e-commerce warehouses for order picking, sorting and packaging operations, logistics distribution centers for bulk cargo storage and turnover, and manufacturing factories for workshop layered production and parts storage. In addition, it perfectly matches auto parts warehouses, hardware and mechanical equipment storage rooms, electronic component stock areas, and retail commodity storage spaces. The customized structural design also enables it to adapt to different warehouse heights and site sizes, meeting the layered storage and space utilization needs of various light and heavy-duty storage scenarios.



⭐ Key Benefits:

• ✔️Maximize vertical space:Zero Building Damage & Space Maximization：This self-supporting steel structure stands independently on the floor without welding or drilling on the original factory building. It fully utilizes vertical headroom to double or triple storage space, solving the pain point of limited warehouse area without high-cost factory expansion.
• ✔️Fully Modular & Reusable Structure：All components are factory prefabricated and connected by standard fasteners. It features fast on-site assembly, no on-site welding, and 100% detachable design. The platform can be disassembled, relocated and reused perfectly when customers adjust warehouse layouts or move factories, greatly lowering long-term operational costs.
• ✔️
  Super Stable & Durable Performance：Made of premium Q235B carbon steel and treated with electrostatic epoxy powder coating, the structure is anti-rust, anti-scratch and dust-proof. With a load capacity ranging from 300kg/㎡ to 3000kg/㎡, it delivers stable bearing performance, strong impact resistance and a long service life for long-term industrial use.


• ✔️
  High Cost-Effectiveness & Safety Compliance：As a one-stop warehouse upgrading solution, it features low installation cost and zero later maintenance. All designs comply with international industrial safety standards, ensuring safe, efficient and standardized daily operation for enterprises.
